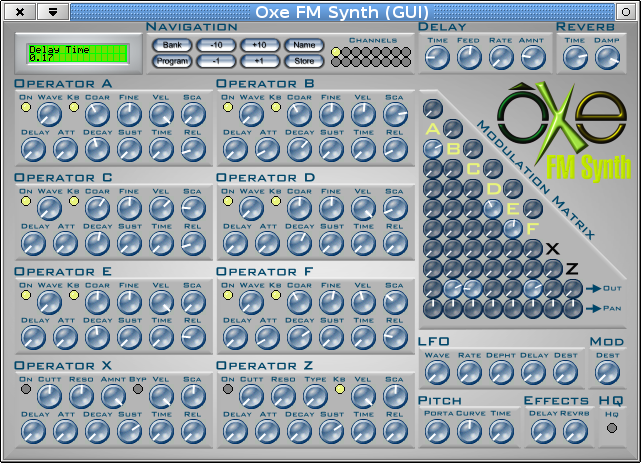

Oxe FM Synth GUI



Oxe FM Synth (version 1.3.1 shown above) is a touch-sensitive, realtime polyphonic FM-based music synthesizer created and maintained by Oxe Software, recently ported to the linux platform as a VST plug-in instrument.

Oxe has 6 operators (oscillators). Each operator can modulate itself and the other operators. This modulation ability is controlled in the matrix section on the righthand side of the GUI. In addition, there is "Operator X" that controls noise generation/limiting; and "Operator Z" that controls a global filter. The filter has low-pass, highpass and bandpass settings.

Each operator has 6 waveform possibilities: sine, triangle, saw, bandlimited-saw, square and bandlimited-square. Coarse frequency detuning for each operator includes a range of +/- 4 octaves and 2 semitones, fine frequency detuning with a range of +/- 01 semitone. Velocity sensitivity for each operator is available, as well as amplitude scaling (key follow).

An LFO section is included, and has waveforms identical to those of the operators. The LFO destination options are pitch, Operator X or Operator Z.

Preset management is provided at the top of the GUI, and is very clear and straightforward. Presets can be scrolled in increments of 1 or 10. 16-midi-channel control is also available. Additional delay and reverb effects are included, with specific parameter controls at the top righthand area, and global level controls at the bottom righthand section.


My Oxe FM Synth Presets My rolling collection of presets for Oxe, in .carxs format, for use with Carla as host. (32-bit only; these preset files may need to have their path-to-binary modified, depending on where OxeFMSynth is installed on your system.) Updated April 22, 2018

Oxe presets at KVR Audio Oxe FM Synth Presets at KVR Audio.
